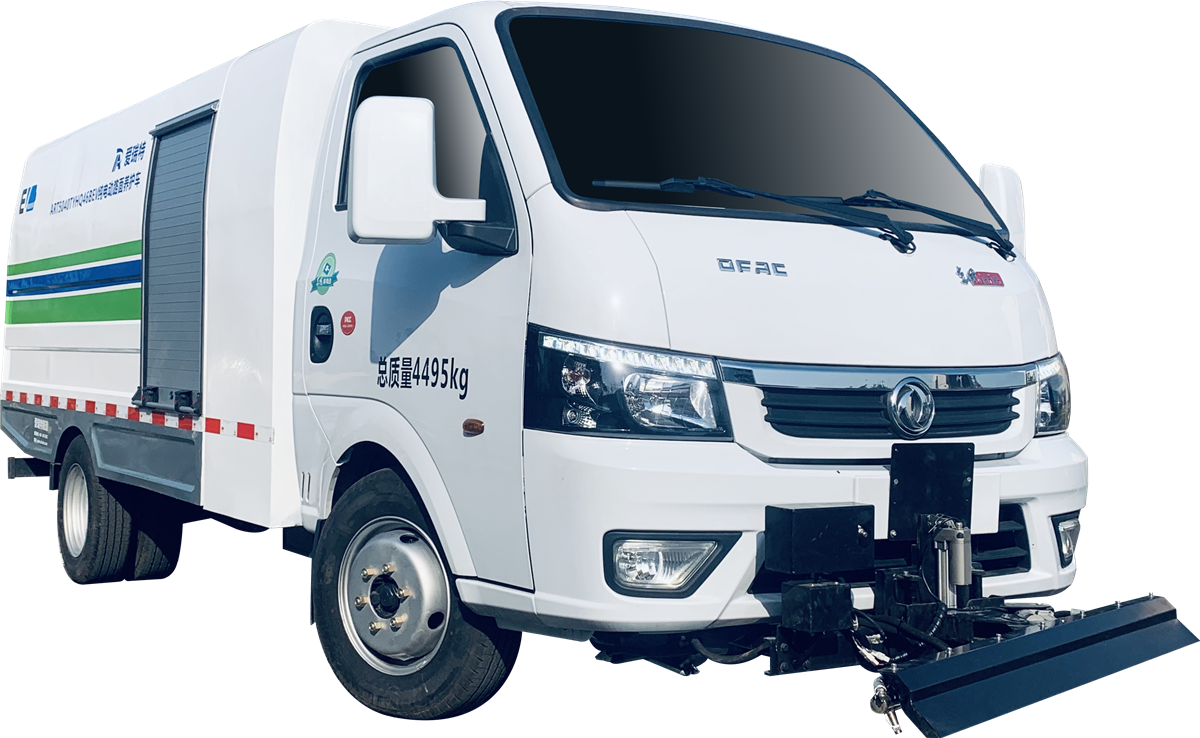

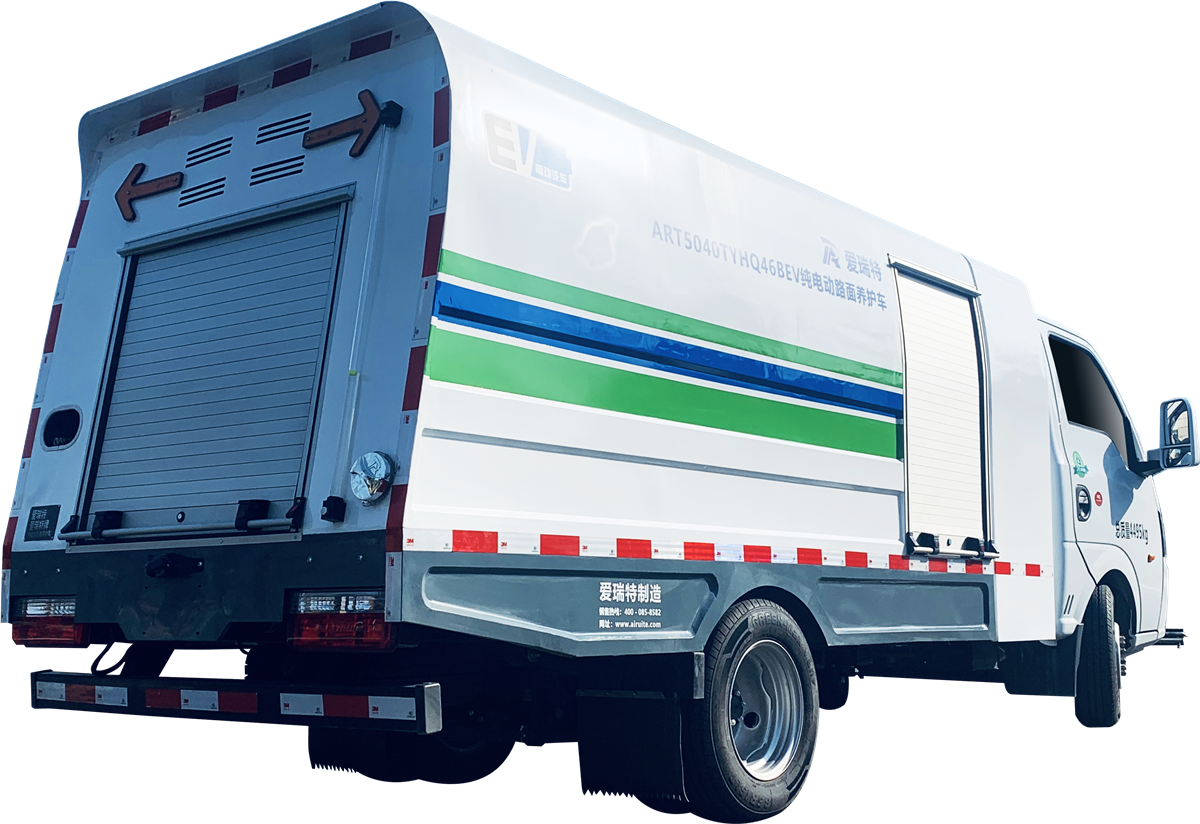

ART5040TYHQ46BEV Pure electric road maintenance vehicle is mainly used for washing and maintenance of motorway, non motorway, sidewalk, back street alley, municipal garden, property community and other roads. The front high-pressure flushing and multi angle flushing device is used to clean the dirt and urban psoriasis at the road surface, road teeth and traffic sign lines. At the same time, it is suitable for garden medicine, rear floor washing cart, site washing and high-pressure water gun, which can wash and maintain the sections where vehicles are inconvenient to stop.
Box body: high-quality high-strength steel plate. The three sides of the box body adopt curtain box doors for fire engines. The box body is divided into storage tank, water tank and operation device tank, with beautiful atmosphere;
Flushing system: front high-pressure flushing and multi angle flushing device, rear washing cart, washing site and high-pressure water gun;
Water pump system: compound excitation brushless DC motor with large flow and high pressure water pump imported from Italy, with stable performance;
Entry name | Company | Parameter |
Chassis model / brand | / | EQ1040TACEV4/East wind |
Total mass | kg | 4495 |
Curb weight | kg | 2860 |
Wheelbase | mm | 3000 |
Battery brand | / | Ningde times (lithium iron phosphate) |
Battery capacity | kWh | 66.84 |
Range | km | 224(Working condition method) |
Maximum speed | km/h | 90 |
Maximum climbing gradient | % | 20 |
Minimum turning radius | m | 6.2 |
Water tank volume | m3 | 2.2 |
Front spray bar cleaning width | m | 1.5 |
Hedge cleaning width | m | 12 |
Pump flow | L/min | 30 |
Pump pressure | Mpa | 0~25 |
Overall dimension(L × W × H) | mm | 5995×1650×2155 |
